    mignon single dose
    espresso
    Our Plus

    ELR System (Extremely Low Retention)

    Silent Technology

    ACE System

    Stepless Micrometric Regulation System (patented by Eureka)

    Diamond Inside Burrs

    Single Dose hopper: Included

    Mignon Blow Up Cleaning: Included

    Dosing cup: Included

    settings up
    16CR
    certifications
    CE
    info request
    Technical specifications
    BURRS
    Type flat
    Diameter 65 mm
    Material Pure Diamond (patented Eureka)
    DISPENSING SYSTEM
    Display No
    Dose counter No
    Adjustable chute No
    Spotlight on filter holder No
    ENGINE
    Traction Direct
    Rpm 1650
    Power absorbed 320 watt
    Feeding Single phase
    VARIOUS
    Typology Manual
    Stepless micrometric adjustment Yes
    Bean hopper capacity 45 g
    Productivity (g/s) 2.3 - 2.8 Espresso
    2.8 - 3.3 Brew
    DIMENSIONS
    Height 321 mm
    Width 128 mm
    Depth 260 mm
    Weight 7,2 kg
    available colours

    standard colours

    matt black
    white

    special colours

    chrome

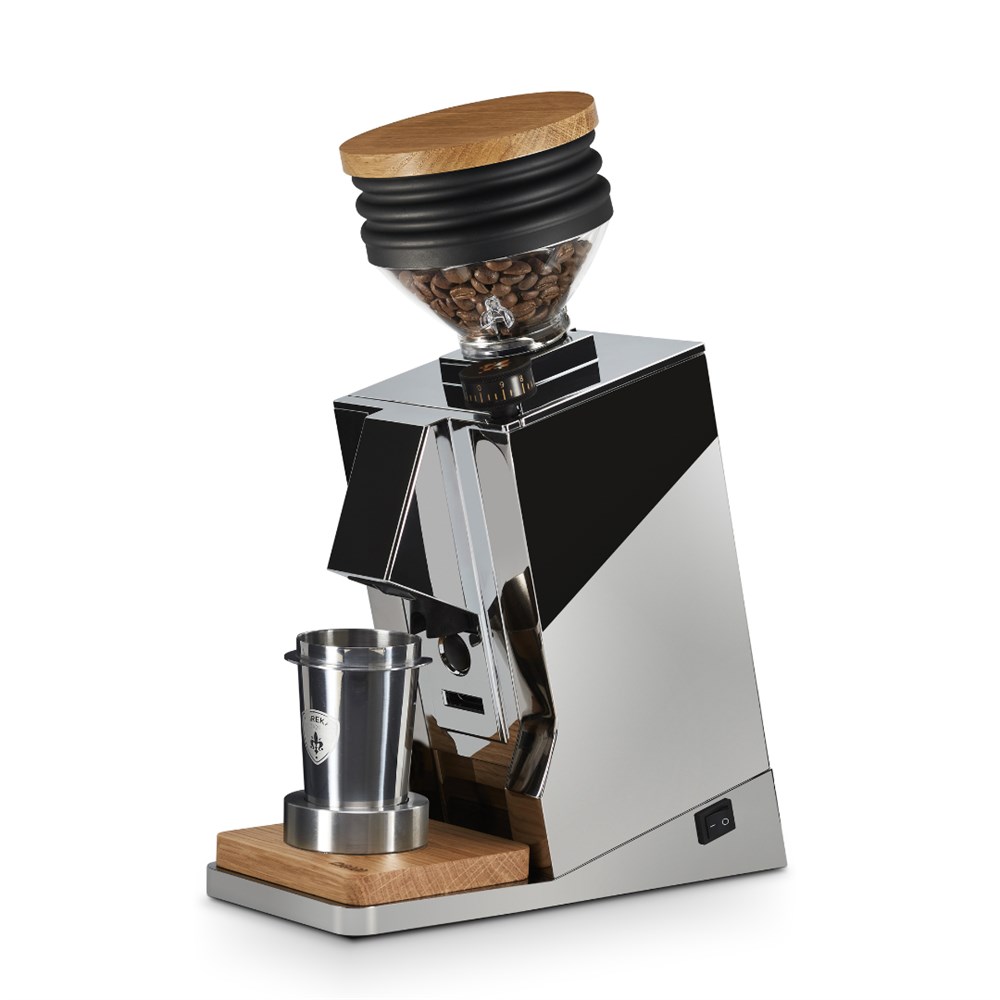

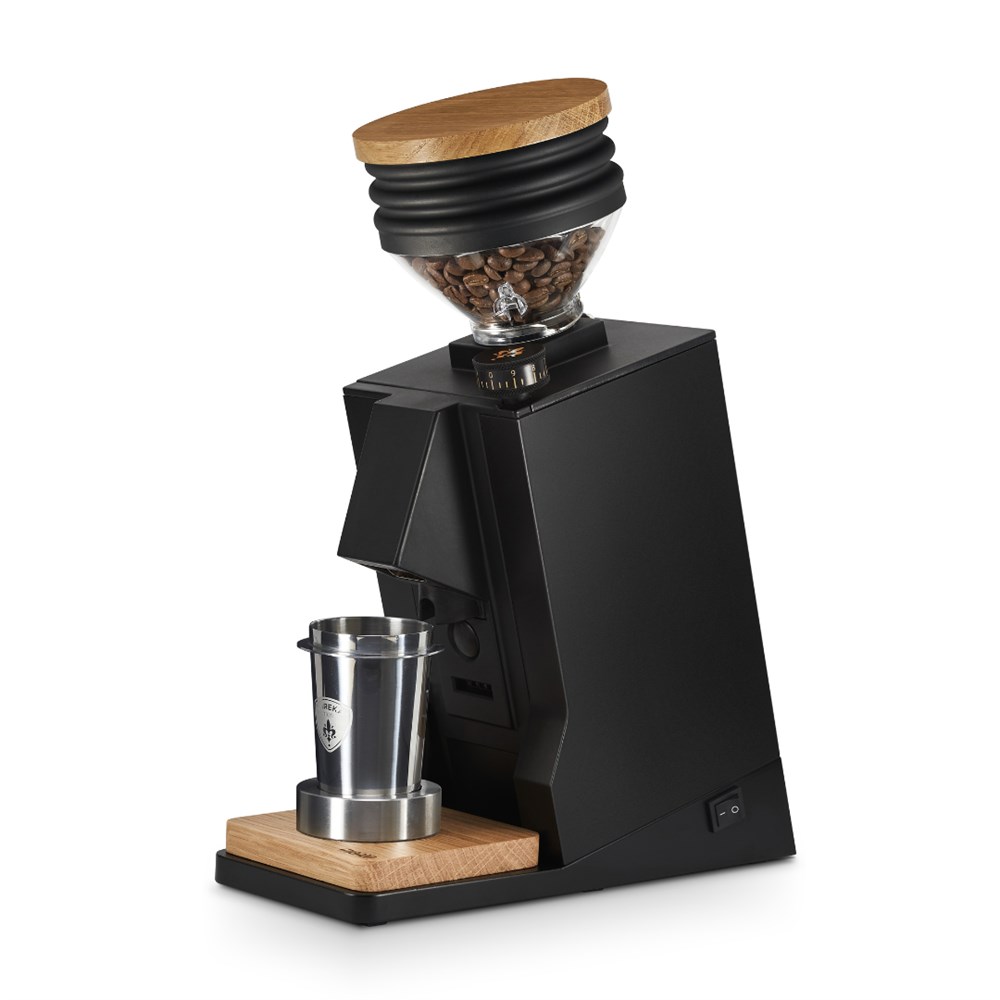

    Mignon Single Dose:
    "inclined" to zero retention.

    ELR System (Extremely Low Retention): the perfect inclination of the grinding chamber (15°), combined with dedicated technical solutions, ensures retention close to zero.

    New Single Dose hopper with branded wooden lid and revolving metal tab (45 g), designed to best satisfy your unique coffee moments.

    Dosing cup, made of stainless steel (45 g), it helps you to easily transfer ground coffee right to your portafilter, all while keeping your workspace.

    Thanks to the included Mignon Blow Up Cleaning you can prepare your next shot with the grinding chamber always clean.

    Oak base shaped for the cups in the catalogue, for an even higher optimization of the workspace.

    The particular combination of engine - Pure Diamond® burrs (65 mm) guarantees high productivity (2.3 – 2.8 Espresso; 2.8 – 3.3 Brew) and a wide range of grinds achievable.

    Maximum silence thanks to the "Silent Technology".

    "High Speed" maintenance, handy and easy, whitout losing the grinding setting.
