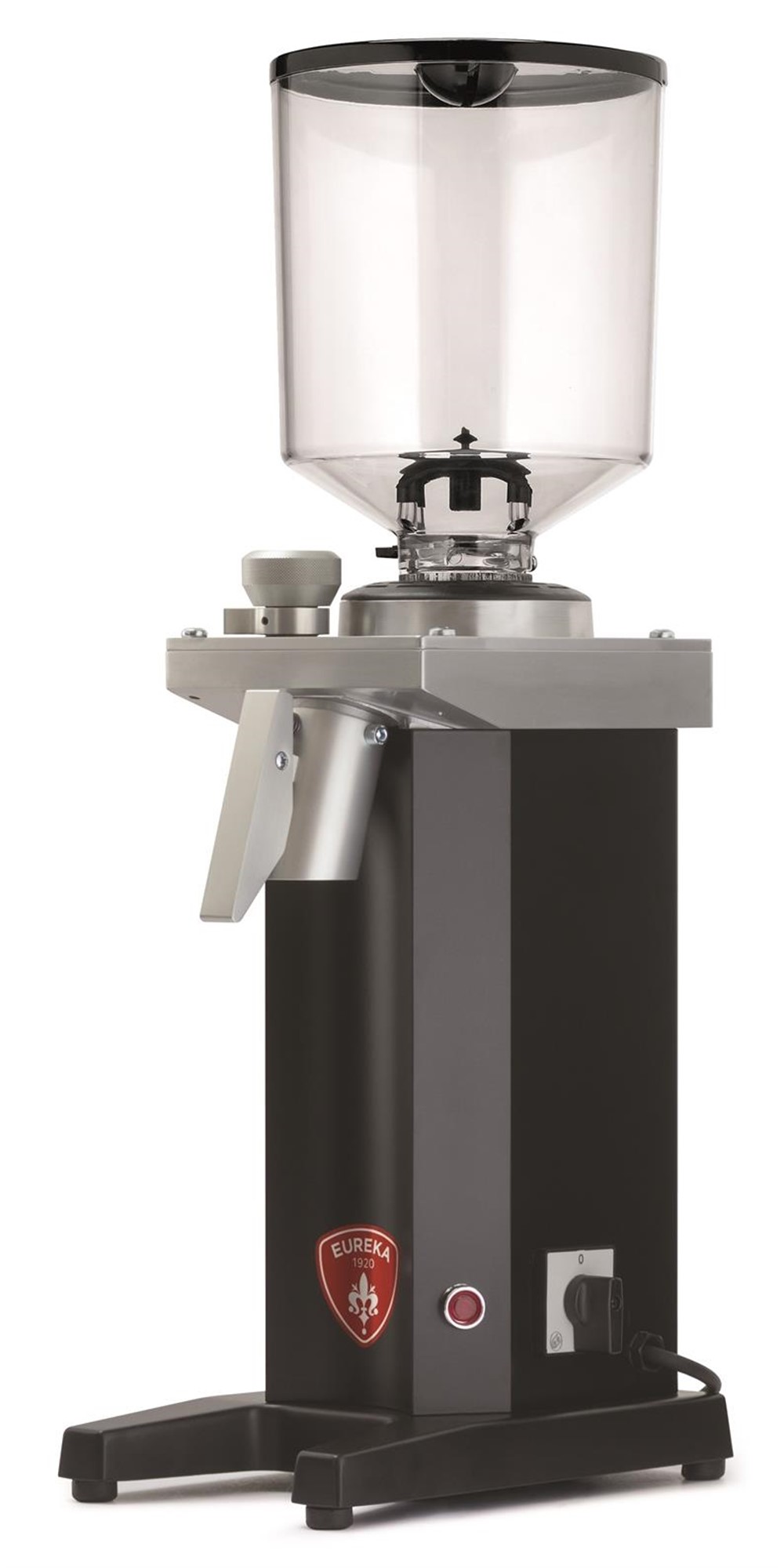

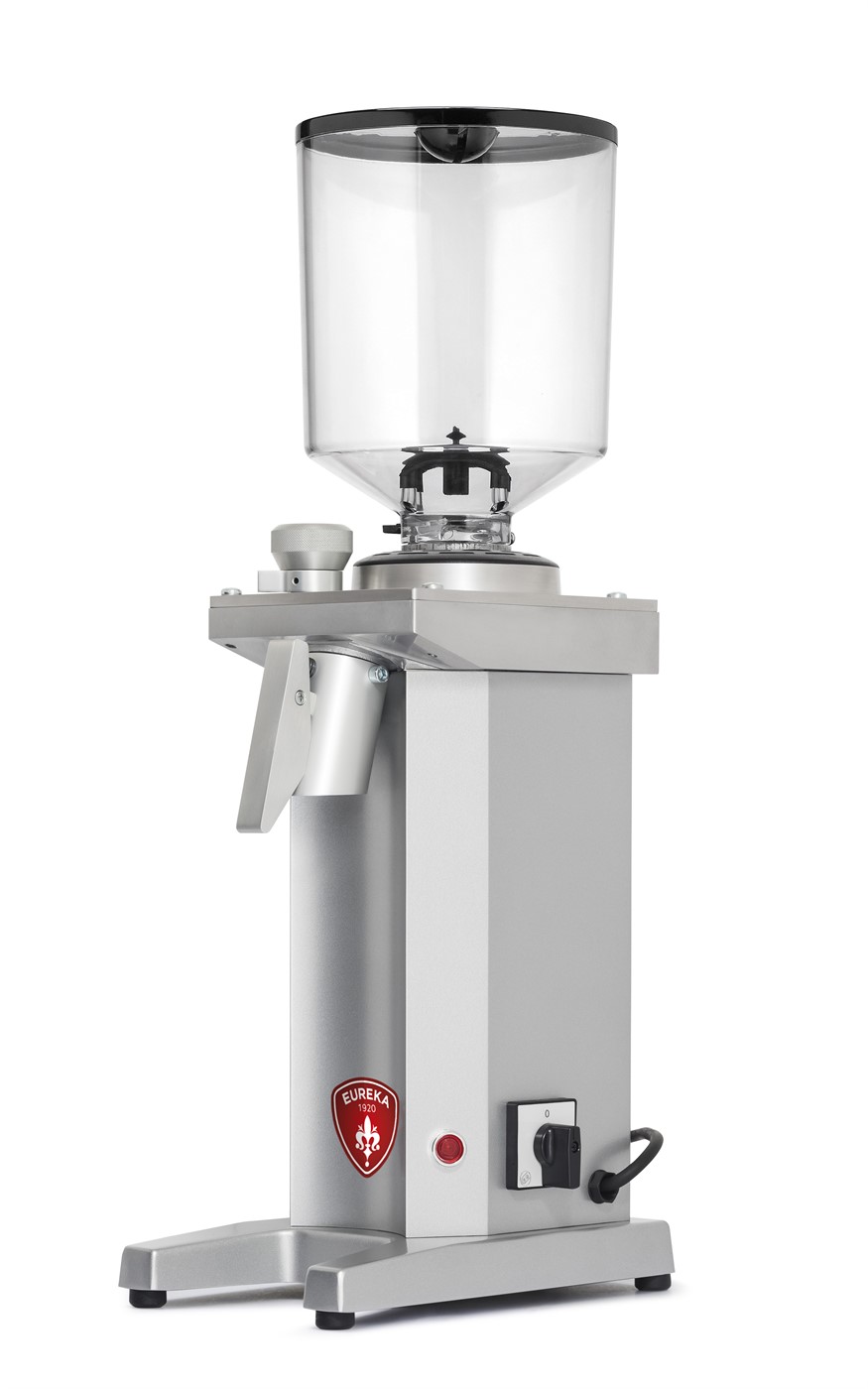

    drogheria mcd4

    all purpose


    Stepless Micrometric Regulation System

    Stepless Micrometric Regulation SystemPatented by Eureka, it assures incomparable setting precision and saving of time and coffee.

    King-size Dial

    King-size DialThis system eases the grinding degree regulation.

    "High Speed" Maintenance

    "High Speed" MaintenanceHandy and easy maintenance operations.

    Blow Up System

    Blow Up System"The mechanism" eliminating the retention with a blow.

    All-Purpose grinder

    New coffee channel with bag holder

    Aluminium body and base

    download drogheria mcd4 - user manual.pdf
    info request
    • Grey
    • Grey
    Technical specifications
    BURRS
    Type flat
    Diameter 65 - 75 - 85 mm
    Material Hardened steel
    ENGINE
    Traction Direct
    Rpm
    1290 (65 mm burrs)
    1430 (75 mm burrs)
    1430 (85 mm burrs)
    Power absorbed
    450 watt (65 mm burrs)
    750 watt (75 mm burrs
    750 watt (85 mm burrs)
    Feeding Single or three-phase
    VARIOUS
    Typology Manual
    Stepless micrometric adjustment Yes
    Bean hopper capacity 1,4 kg
    Productivity (g/s)
    3 - 4 Espresso 4 - 5 Brew (65 mm burrs)
    5,5 - 6,5 Espresso 7,5 - 8,5 Brew (75 mm burrs)
    9,5 - 10,5 Espresso 12,5 - 13,5 Brew (85 mm burrs)
    DIMENSIONS
    Height 645 mm
    Width 184 mm
    Depth 267 mm
    Weight
    11,5 kg (65 mm burrs)
    14 kg (75 mm burrs)
    14,2 kg (85 mm burrs)
    certifications
    CECSACSASanitationUK_CA
    available colours

    standard colours

    matt black
    grey
