    mignon design
    all purpose
    Our Plus

    Stepless Micrometric Regulation System (patented by Eureka)

    Silent Technology

    ACE System

    All-Purpose Adjustable "Hands-Free" Fork

    Espresso & Brew

    "High Speed" Maintenance

    Touch screen (2 doses + continous)

    55 mm burrs for higher productivity

    settings up
    15BL, 16CR
    certifications
    CECSACSASanitationEAC
    info request
    • Whitened oak
    • Natural oak
    • Wengé
    • Red leather
    • Stone
    Technical specifications
    BURRS
    Type flat
    Diameter 55 mm
    Material Hardened steel
    DISPENSING SYSTEM
    Display Yes (Touch)
    Dose counter Yes
    ENGINE
    Traction Direct
    Rpm 1350
    Power absorbed 310 watt
    Feeding Single phase
    VARIOUS
    Typology 2 doses + continuous
    Stepless micrometric adjustment Yes
    Bean hopper capacity 300 gr
    Productivity (g/s) 1,2 - 1,8 Espresso
    1,9 - 2,5 Brew
    DIMENSIONS
    Height 330 mm
    Width 120 mm
    Depth 140 mm
    Weight 5,6 kg
    available colours

    standard colours

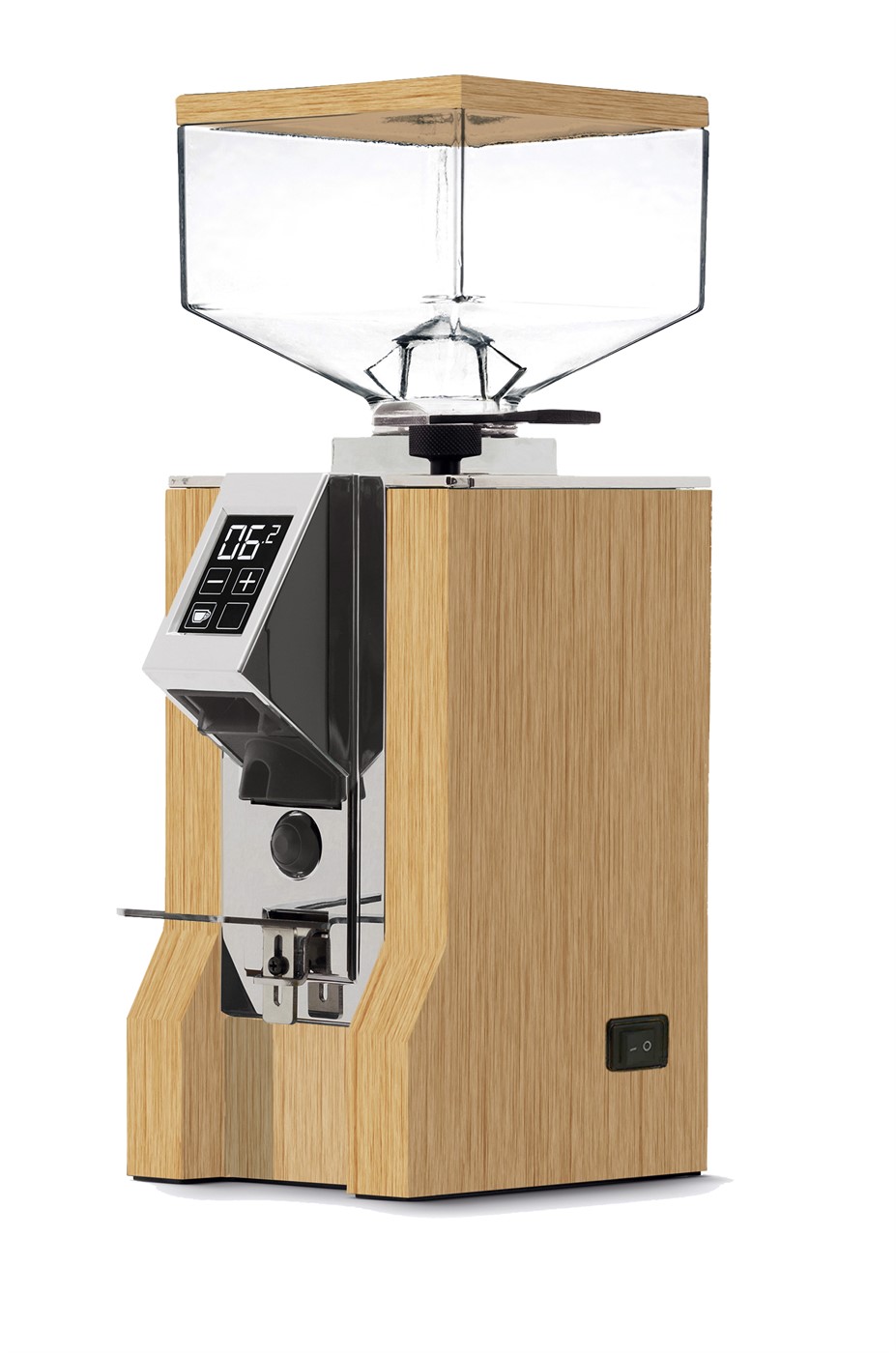

    natural oak

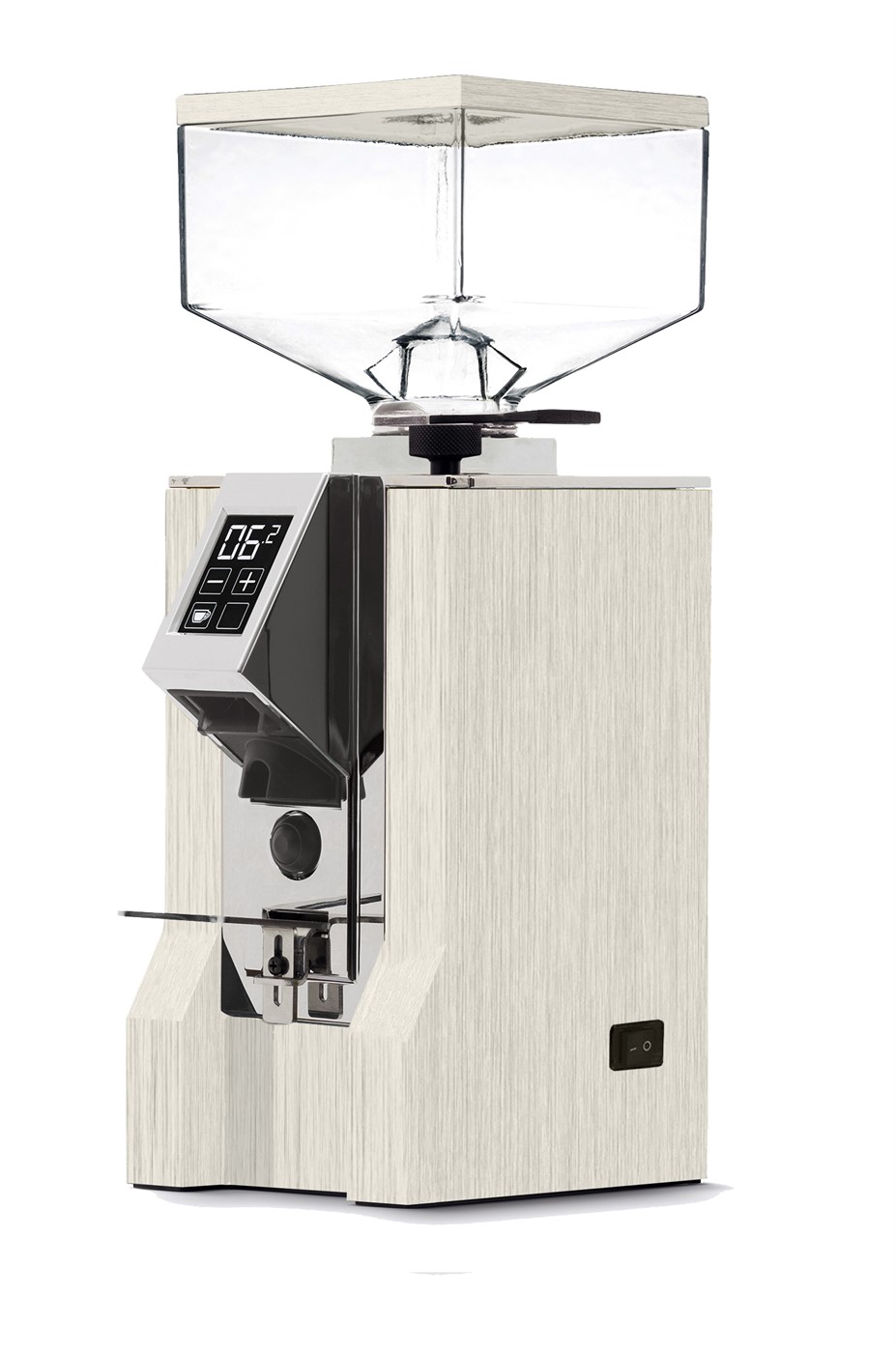

    whitened oak

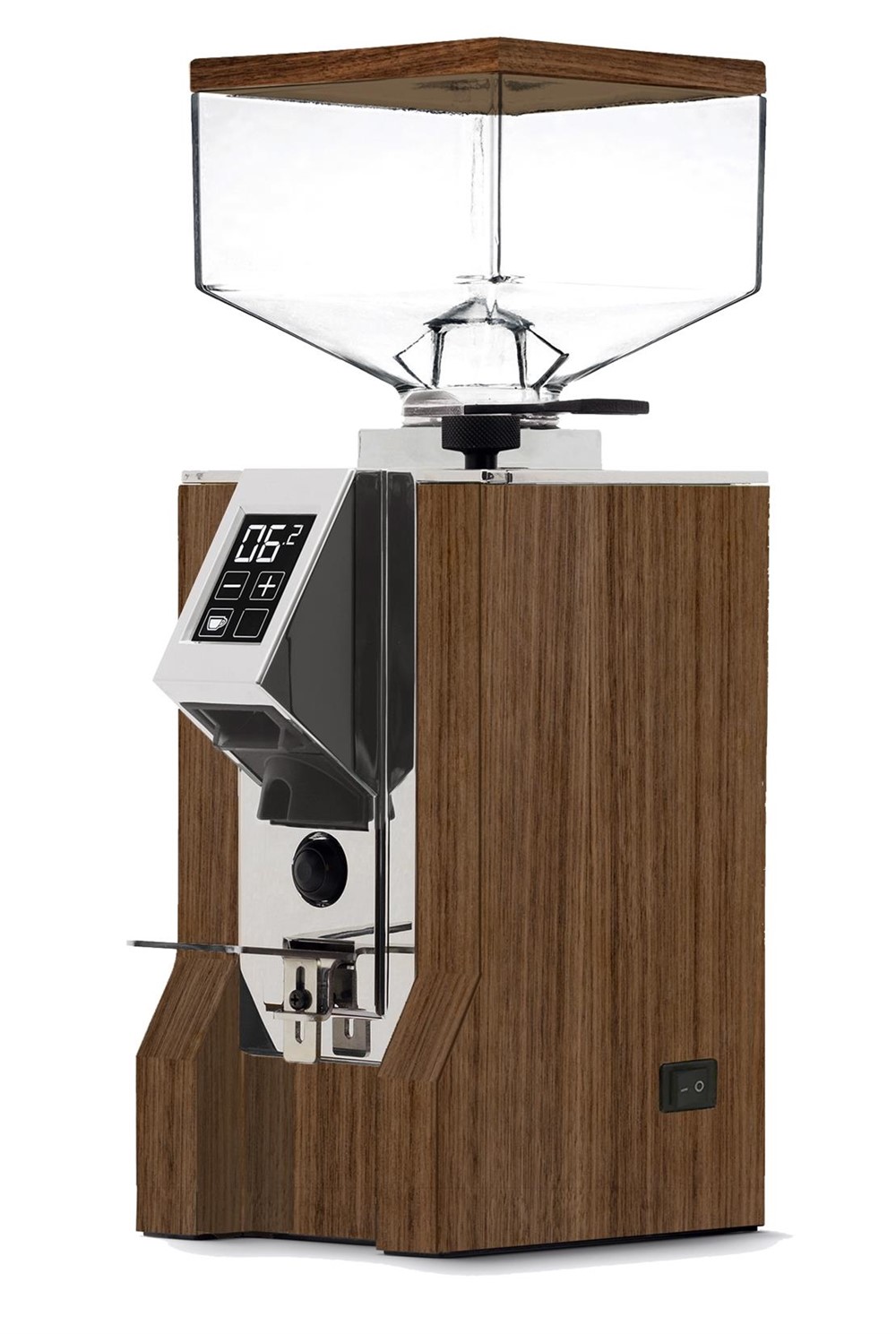

    stained walnut

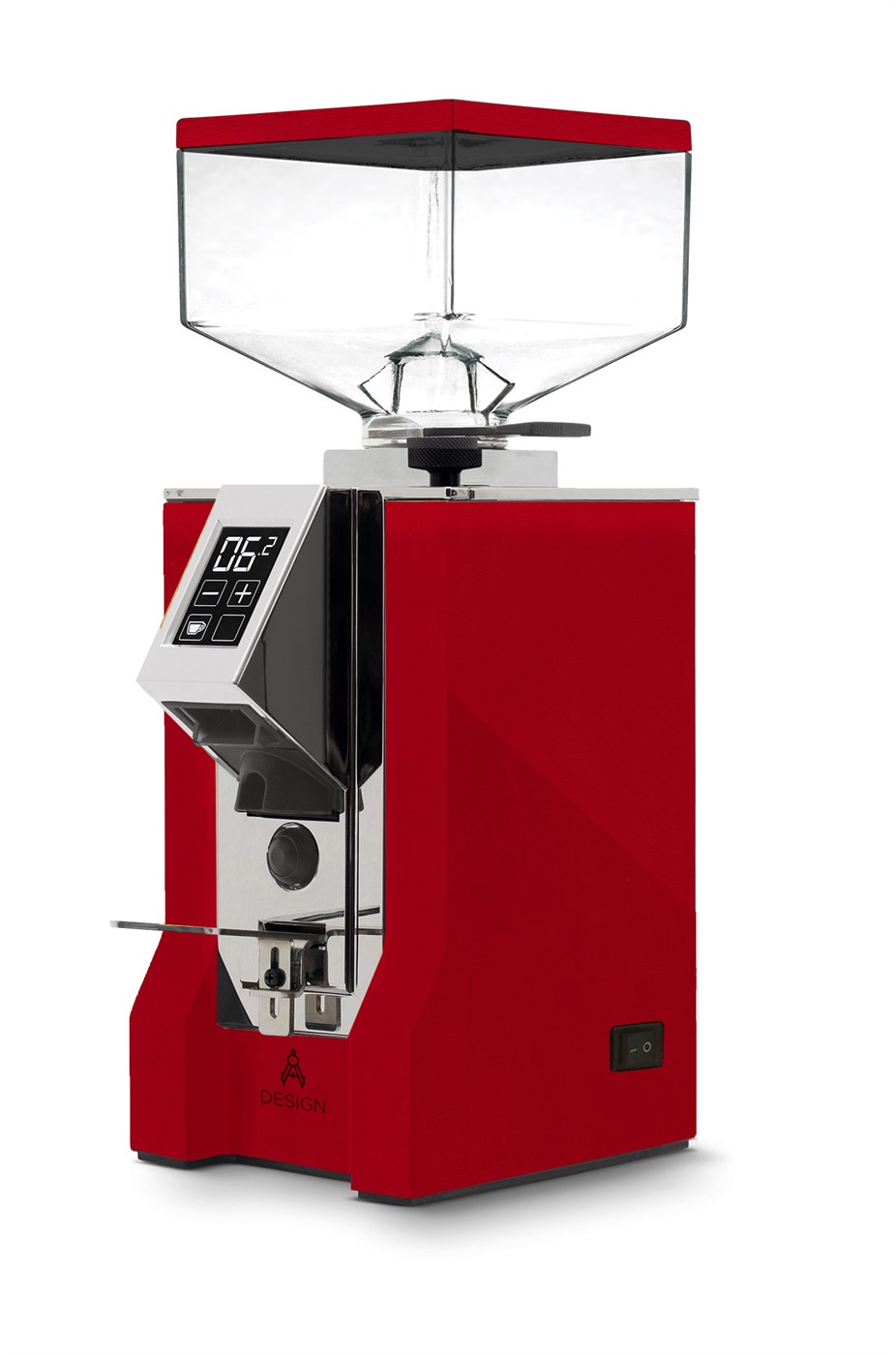

    red leather

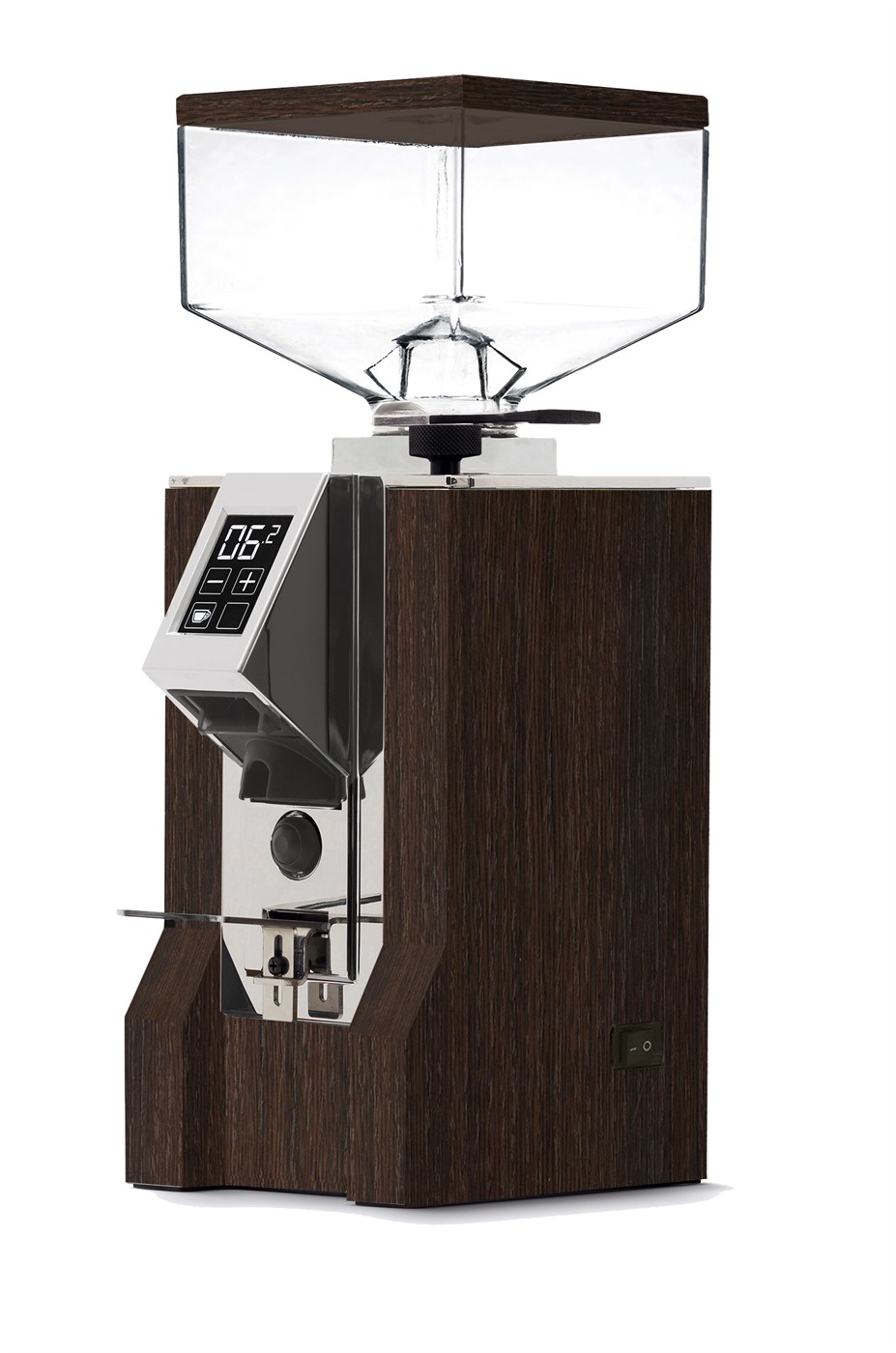

    wengé

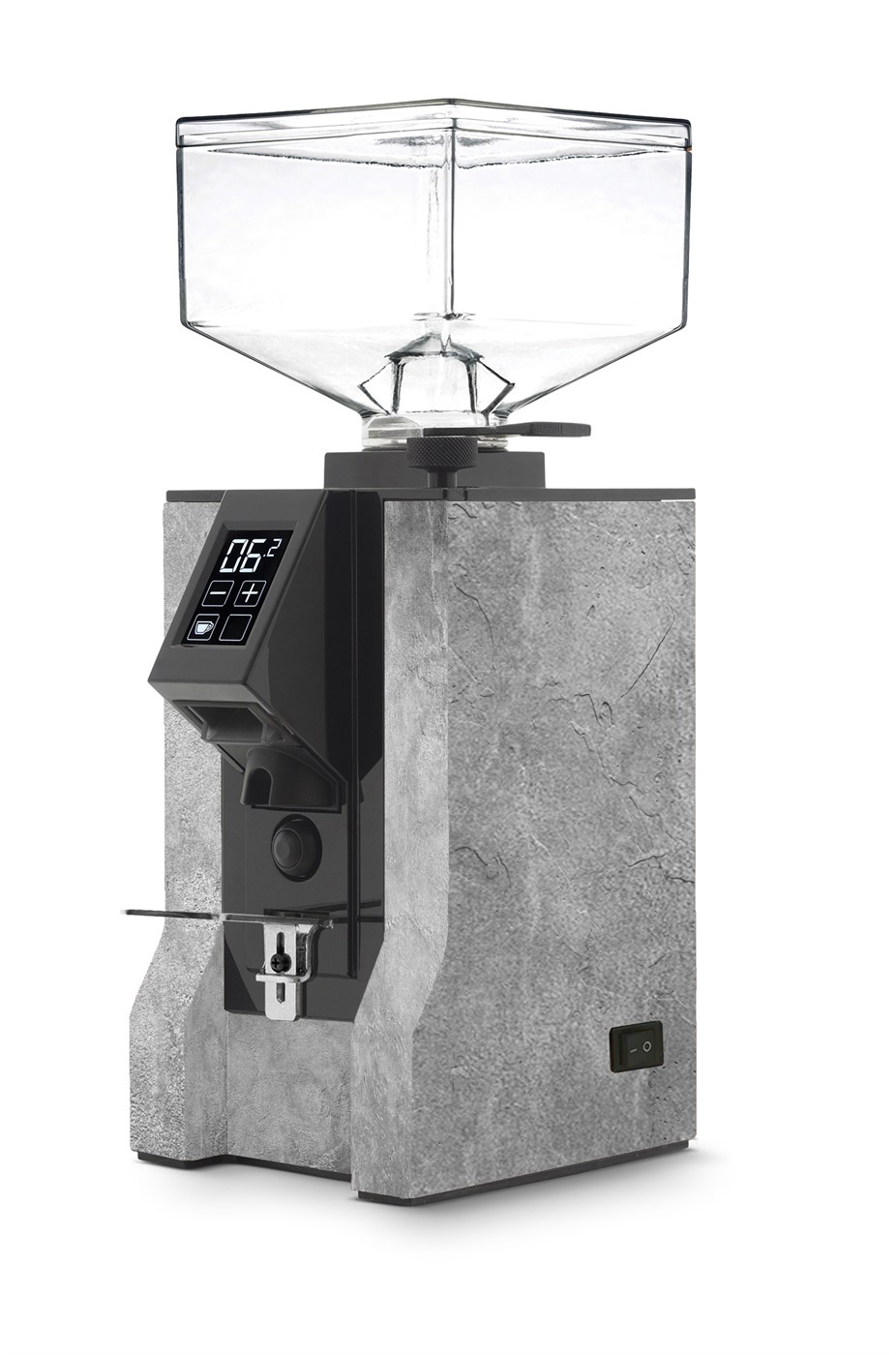

    stone

    Embellish your coffee corner

    with one of the unique configurations of the Mignon Design.

    The Mignon for those who don't want to go unnoticed.
